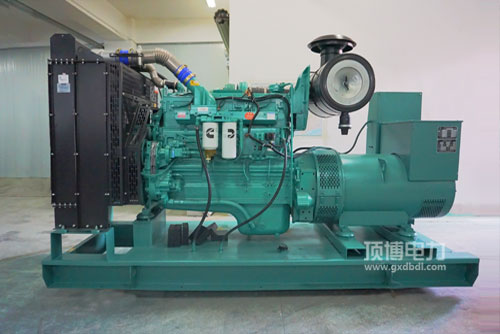

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电厂用发起机汽柴油经济实惠性好: 现代化的汽柴油操纵操作系统性，特有的STC、ESTC 分级a操纵操作系统性，专项 设计制作的汽缸顶端燃燒室，进行高压喷出汽柴油，有效吸雾，燃燒有效。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯并网发电用热车机瞬态性能方面出众: 高品质的热车机局部开发，加上康明斯特殊的EFC程序，管控精确更高，加载日期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电站用起主观因素升工作电压高: 产品设汁紧促.自己的外观摆设适当，运转能保持稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷车型 QSNT. QSK19. QSK38. QSK50充分考虑中国内地非路途最后时候及南美Tier2. Tier 3废气法律规定规定要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零部件必须性好， 汽车发倾向运动及保障调养生活便利，利润低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

瓦数区域 Power Range   224-310KW型号规格 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L自己的外观长度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质理 Dry Weight   940kg

224-310KW康明斯并网发电用起主观因素的特殊性：体积太小， 降低比低， 防雨百叶窗环境热处理加热，非常易初始化，手机车载电子交流电源的省心。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

启因素具体型号	最常用马力(kW)Prime Power	自备工作功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
